橡胶衬里管道

橡胶衬里管道is used to transport Abrasive Slurry solutions, Corrosive Chemicals, and many other liquids from one place to another.

创建橡胶衬里管的步骤

我们的植物仔细考虑了所传达的材料的温度，化学成分和浓度，以确定橡胶管的最佳化合物。

Fabricate the pipe
检查焊接
准备基质（爆破）
涂粘合剂系统

Make a Rubber Tube
Stitch the Tube Seam
Insert the Tube into the Pipe
Apply the Flange Faces
Vulcanize (Cure) the Lining

Inspect & Spark Test the Lining
爆炸无衬表面
涂上未定曲面
最终检验

采用适当的橡胶管衬砌，管道可以承受多年的磨料和腐蚀性的服务条件。橡胶化合物用于耐化学性以保护您的管道免受酸和氧化剂的影响。

Rubber Lining Options

对于具有高固体含量或侵蚀性化学化妆的流体流，橡胶衬里钢管传统上是非常有效的解决方案。有各种橡胶化合物和杜氏剂可用。虽然其他化合物可以可用，但下面还有常见的采矿应用解决方案。

橡胶衬里属性：

Pipe size is never a concern when working with Industrial Rubber. An innovative application process makes it possible to rubber line pipe ranging from 3 inches in diameter up to the largest diameter manufactured.

柔软的天然橡胶

最低的成本
优异的磨损
tear resistance
Good general chemical resistance
在寒冷的天气或快速变化中稳定
40-60典型的硬度计
Pure Gum Based

Hard Natural Rubber

Moderate cost
优秀的化学品
permeation resistance
耐热超过200˚F
身体坚韧
60-90 durometer typical
基于EnboIte.

Chloroprene/Butyl/Hypalon Rubber

更贵
善于优秀的化学品
ppermeation抵抗
耐热超过200˚F
寒冷的天气稳定
快速变化
耐油（Hypalon）
40-60典型的硬度计

由于大多数橡胶衬里管道应用用于运输磨料浆料，我们测试我们的材料进行耐磨性，以确保我们为您提供适合您申请的最佳产品。

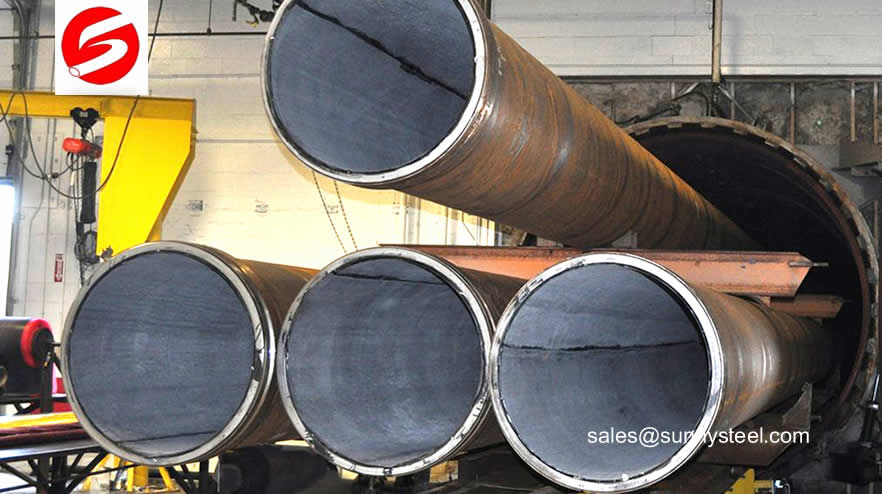

We install rubber linings in pipe as small as 1½” dia. and as large as 144″ dia. We vulcanize (cure) the lining installed in pipe up to 88″ diameter (flanged) in our autoclaves. Curing in an autoclave produces superior adhesion properties over other processes (i.e. atmospheric and internal steam). Autoclave curing also maximizes the lining life in the pipe versus other methods.

We can fabricate and rubber line your pipe with a minimum lead-time. All Rubber Lined Pipe orders receive the same attention, whether it’s a large order, or a single piece.
