90 degree Long Radius Elbow

Stainless pipe elbows

Sunny Steel are Manufacturer of 90 degree Long Radius Elbow. The 90 degree Long Radius Elbow manufactured using superior grade raw materials. The 90 degree Long Radius Elbows are used for connecting pipes of different diameters and find wide applications in various chemicals, construction industries, paper, cement & ship builders.

我们采用了广告vanced production equipment to make our 90 degree Short Radius Elbow(1D D711.2~D1219.2), which can not only improve product quality, but also save raw materials.

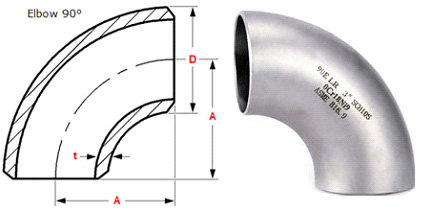

ASME B16.9 Butt weld 90 degree Long Radius Elbow Dimensions

ASME B16.9 Butt weld 90 degree Short Radius Elbow Dimensions

ASME B16.9 90°Short Radius Elbow Dimensional Tolerance

NPS

O.D.
D

90 degrees
Long Radius
Center-to-End
A

45 degrees
Long Radius
Center-to-End
B

90 degrees
3D
Center-to-End
A

45 degrees
3D
Center-to-End
B

1/2

21.3

38

16

-

-

3/4

26.7

38

19

57

24

1

33.4

38

22

76

31

42.2

48

25

95

39

48.3

57

29

114

47

2

60.3

76

35

152

63

73

95

44

190

79

3

88.9

114

51

229

95

101.6

133

57

267

111

4

114.3

152

64

305

127

5

141.3

190

79

381

157

6

168.3

229

95

457

189

8

219.1

305

127

610

252

10

273

381

159

762

316

12

323.8

457

190

914

378

14

355.6

533

222

1067

441

16

406.4

610

254

1219

505

18

457

686

286

1372

568

20

508

762

318

1524

632

22

559

838

343

1676

694

24

610

914

381

1829

757

26

660

991

406

1981

821

28

711

1067

438

2134

883

30

762

1143

470

2286

964

32

813

1219

502

2438

1010

34

864

1295

533

2591

1073

36

914

1372

565

2743

1135

38

965

1448

600

2896

1200

40

1016

1524

632

3048

1264

42

1067

1600

660

3200

1326

44

1118

1676

695

3353

1389

46

1168

1753

727

3505

1453

48

1219

1829

759

3658

1516

ASME B16.9 90° Long Radius Elbow Dimensional Tolerance
DIMENSIONAL TOLERANCES - ELBOWS
For all fittings Elbows 90/45 deg 180° Returns
Nominal Pipe Size (NPS) Outside Ø
at Bevel
Inside Ø
at End
Wall Thickness
t / t1
Center to End Dim. A-B-C-M Center to Center Dim.
O
Back to Face Dim.
K
Align- ment of Ends
U
1/2 a 2 1/2 1 0,8 Not 2 7 7 1
3 a 3 1/2 1 1,6 less 2 7 7 1
4 +2 -1 1,6 than 2 7 7 1
5 a 6 +3 -1 1,6 87,50% 2 7 7 1
8 2 1,6 of nominal 2 7 7 1
10 +4 -3 3,2 thickness 2 7 7 2
12 a 18 +4 -3 3,2 3 10 7 2
20 a 24 +6 -5 4,8 3 10 7 2
26 a 30 +7 -5 4,8 3 ..... ..... .....
32 a 48 +7 -5 4,8 5 ..... ..... .....

An elbow is a pipe fitting installed between two lengths of pipe or tubing to allow a change of direction, usually a 180° or 90° angle, though 45° elbows are also made. The ends may be machined for butt welding (SW) or socketed welding(SW) etc.

Most elbows are available in short radius or long radius variants. When the two ends differ in size, the fitting is called a reducing elbow or reducer elbow.

Elbows are categorized based on various design features as below:

  • Long Radius (LR) Elbowis also called LR elbow – means the radius is 1.5 times the pipe diameter
    • L/R 45°Elbow: Long radius 45 degree elbow changes the direction by 45 degrees.
    • L/R 90°Elbow: Long radius 90 degree elbow changes the direction by 90 degrees.
    • L/R 180°Elbow: Long Radius 180 degree return bend allows complete reversal of flow.
  • Short Radius (SR) Elbowis also called SR elbow, – means the radius is 1.0 times the pipe diameter

Elbow Size

Size range:


Recommended type of pipe elbows:

材料

  • Carbon steel: ASTM/ASME A234 WPB-WPC
  • Alloy steel: --WP 22-WP 5-WP 91-WP 911
  • Low temperature steel: ASTM/ASME A402 WPL 3-WPL 6
  • High performance steel: ASTM/ASME A860 WPHY 42-46-52-60-65-70
  • Stainless steel: ASTM/ASME A403 WP 304-304L-304H-304LN-304N
    • ASTM/ASME A403 WP 316-316L-316H-316LN-316N-316Ti
    • ASTM/ASME A403 WP 321-321H ASTM/ASME A403 WP 347-347H

Abrasion resistant elobw

SHS-self-propagating ceramic composite steel pipe and fittings, the new generation of wearable and corrosion resistant engineering pipeline, belongs to "863" Hi-tech Plan products.

It is the ideal wearable and corrosion resistant engineering pipeline, with wear resistance 15 times higher than common steel pipe, smooth inner surface, and favorable liquor resistance.


Pipe elbows

Butt Weld Pipe Fitting Bevel

  • All welded pipe fittings have bevelled end to allow for ease of welding.
  • This bevel allows for full penetration weld in most cases.
  • There are two types of bevels;
    Plain Bevel and Compound Bevel: according to the bevel of welding pipe fittings construction .
  • ASME B16.28, Buttwelding Short Radius Elbows and Returns
Industrial Processes: Bending, squeezing, pressing, forging, machining and moreANSI/ASME B16.25, Buttwelding Ends
ANSI/ASME B16.25 Standard covers the preparation of butt welding ends of piping components to be joined into a piping system by welding.

Application of pipe elbows:

Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc.

ELL & ELLS

  • A wing of a building at right angles to the main structure.
  • A right-angled bend in a pipe or conduit; an elbow.

管件标准及相关参数:

Fitting specification, Standard and identification

There are different varieties of pipe fittings made of various materials and available in various shapes and sizes.
